Automist Installation Information and Requirements

First Fix

First Fix Stage – BCK Supply and install the high-pressure hoses and Wired/Wireless Heat Detector/s, this may include chasing the walls or cutting into the plasterboard as shown on the image below

Commissioning

Commissioning Stage – BCK Supply and install the Smartscan Hydra Pump/s, Controller/s and Head/s, Water and Electric need to be on and working in order for us to commission and all the items shown on the “Automist Requirement” list need to be in place.



Please Note: We advise that plastering and painting need to be done before commissioning stage.

Smartscan Hose Installation
Smartscan Hose Installation

When plastering allow for movement and slack on the hose

press to zoom
First Fix Sequence
First Fix Sequence

Example of First Fix installation of the Smartscan Hydra Hose and Cable

press to zoom
Smartscan Hydra Head
Smartscan Hydra Head

Commissioned Smartscan Hydra Head

press to zoom
Smartscan Hose Installation
Smartscan Hose Installation

When plastering allow for movement and slack on the hose

press to zoom
1/3

Electrical Supply

  • Independent power supplies from the distribution board using a RCBO C16 Breaker per pump in FP200 2.5mm 3 Core Cable (2 core + Earth) or better, ideally inside conduit or protected 50 mm deep within a wall

  • Unswitched 13-amp Fused Spur, it must be adjacent to each pump

DO NOT INSTALL A B16/32 BREAKER

The Above Needs to be Installed by a Certified Electrician

We will need a copy of the Electricians Installation Certificate

C16 Breaker
C16 Breaker

C16 Breaker to the Unswitched Fused Spur on an independent line

press to zoom
Unswitched Fused Spur
Unswitched Fused Spur

1 x Unswitched Fused Spur per Pump

press to zoom
C16 Breaker
C16 Breaker

C16 Breaker to the Unswitched Fused Spur on an independent line

press to zoom
1/2

Water Supply

  • Water supply with a 3/4” washing machine tap on each connection for each pump

  • The cold-water supply must deliver adequate flow and pressure.

    • Minimum 8 litres per minute flow

    • 1.5 – 6 bar pressure static water pressure

  • Water supply needs to be 400mm from the floor and at least 80mm from wall so we can fit the filter and pump connectors. (please see example photo below)

Smartscan Hydra Pump_Water Connection
Smartscan Hydra Pump_Water Connection

Example of the Smartscan Hydra Pump and Water Connection Set up

press to zoom
Water Connection Layout
Water Connection Layout

press to zoom
Washing Machine Tap
Washing Machine Tap

The same as a Washing Machine or Dishwasher Connector

press to zoom
Smartscan Hydra Pump_Water Connection
Smartscan Hydra Pump_Water Connection

Example of the Smartscan Hydra Pump and Water Connection Set up

press to zoom
1/3

Pump Sizes

  • H 365mm x D 240mm x W 181mm

  • Please allow adequate room for the connections at the rear of the pump at least 200mm in the back and 100mm in the front and sides.

Smartscan Hydra Pump Layout
Smartscan Hydra Pump Layout

press to zoom
Smartscan Hydra Pump Leamington Spa
Smartscan Hydra Pump Leamington Spa

press to zoom
General Pump Setup
General Pump Setup

Showing the water & electrical requirements we need in place for Commissioning

press to zoom
Smartscan Hydra Pump Layout
Smartscan Hydra Pump Layout

press to zoom
1/3

Smartscan Hydra Head

  • The Automist sprayhead is mounted at a height of 1200 - 1450mm from floor level in a kitchen and 1400 - 1450mm from the finish floor level in all other rooms.

  • The lower height in the kitchen is for better targeting of the significant fire risks; white goods and the hob/cooker in a room assuming a standard worktop height of 900mm high.

  • The Head is designed to be affixed into a hole 90mm wide x 117mm high and 57mm deep.

  • If using a Back Box, the hole dimensions area as follows 95mm wide x 120mm high & 60mm deep

  • IMPORTANT! The Automist Smartscan Hydra head must be located where the spray pattern will not be obstructed and 1500mm horizontal clearance provided 180 degrees around the sprayhead.

Smartscan Hydra Head
Smartscan Hydra Head

press to zoom
Smartscan Hydra Head on Mosaic Tiling
Smartscan Hydra Head on Mosaic Tiling

press to zoom

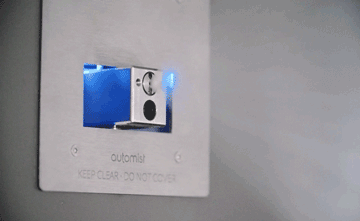

ani_Smartscan_spray
ani_Smartscan_spray

Showing the water & electrical requirements we need in place for Commissioning

press to zoom
Smartscan Hydra Head
Smartscan Hydra Head

press to zoom
1/3

Cables & Hoses

  • Cables installed at first fix in the ceiling need to be visible when we return to commission so the engineer can connect to heat detectors

  • Once client has plastered and painted and ready for commissioning the system, the high-pressure hoses installed at first fix will need to be loose in the wall cavity so our engineers will be able to pull it out of the wall at least 2 inches to install the head

Cable
Cable

press to zoom
Hose
Hose

press to zoom
Cable
Cable

press to zoom
1/2

Multi-Sensor Detectors

All estimates are based on Wired Multi-Sensor Detector/s to be installed, if the project is a retrofit, to save cutting ceilings to install the Cable for the Detectors you or our installers may request “Wireless Detectors” which will be at an additional cost per detector. (Ask the engineer for the price or contact the office)

IMPORTANT! These detectors are what activates the Smartscan Hydra Head and are separate to any other Fire Detection you may have in the property.

Heat Detector
Heat Detector

press to zoom
Smartscan Hydra Heads
Smartscan Hydra Heads

press to zoom
Heat Detector
Heat Detector

press to zoom
1/2
